XH-35L rubber mixing kneader/internal mixer/banbury kneader machine

1 Set
MOQ
$26,500.00(1 - 1 Sets) $25,500.00(>=2 Sets)
preço

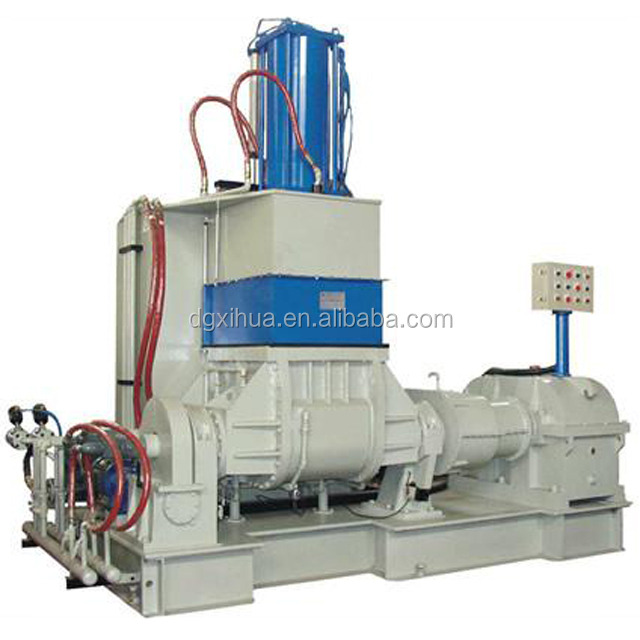

XH-35L rubber mixing kneader/internal mixer/banbury kneader machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New, New
Mixing Capacity(L): 35 L
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Gearbox, Motor
Tilting Angle(°): 110
Power (kW): 55 kW
Compressed Air Pressure(MPa): 0.8 MPa
Feeding Mode: Back, Front
Voltage: 380V
Dimension(L*W*H): 2570*2180*2570mm
Year: 2021
Warranty: one year
Key Selling Points: Long Service Life
Weight (KG): 6000 KG
Showroom Location: None
Applicable Industries: rubber mixing
Type: Rubber Kneader
color: like photo or designed
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certificação: ISO
Informação básica
Certificação: ISO
Condições de Pagamento e Envio
Packaging Details: wooden box
Descrição de produto
Product Description

Product Application

This machine is suitable for stiring,kneading and dispersion of all kinds of chemical raw materials,such as plastic ,rubber, synthetic rubber hot melt adhesive, etc.And then put the formula into the production line.This machine is equipped with PLC man-machine interface,temperature control module,and heat conduction oil heating cooling system.Make it easy to operate,fast heating and cooling.With this machine,you can do many different experiments of all kinds of material in a short time.

XH-420-35L Technical Parameter
Mixing Capacity
35L
Heating mode
oil heating or electrical heating
Temperature
room tempe ~300°C
High tempe oil pump
0.75KW-350°C wheelcoupled(lift:20m, flow:3/H)
W type mixer chamber
138*200mm high-carbon steel
Mixing blade
137*200mm high-carbon steel
Power of main motor
5.5 KW
Rotate speed of motor
1440rpm
Weight
about 1200Kg
Tilt angle of Mixing chamber
110°
Power
3Ø, AC380V, 20A

Main Features

(1) the local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect.

(2) the mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily.

(3) pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution.

(4) mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating.

(5) electronic control requires adjustments according to customer requirements.

Certifications
Detailed Images

Machine Parts

Name: Control Panel

Brand: XIHUA

Original: CHINA


Main Features

Name: Mixing Chamber
Brand: XIHUA
Original: CHINA
In a closed room through a different ratio of the rotos rotating shearing, extrusion, mixing action, plastic (mixed) and then make the material you need.

Our service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact information


Dongguan Xihua Testing Machine Co.,Ltd


WhatsApp: +86 15625539168

Wechat: +86 15625539168

Website: www.lab-xh.com
Our Exhibition
Packing & Delivery
Packaging
Size
1200*650*1350mm
Weight
about 650kgs



Packaging Details



wooden cage
